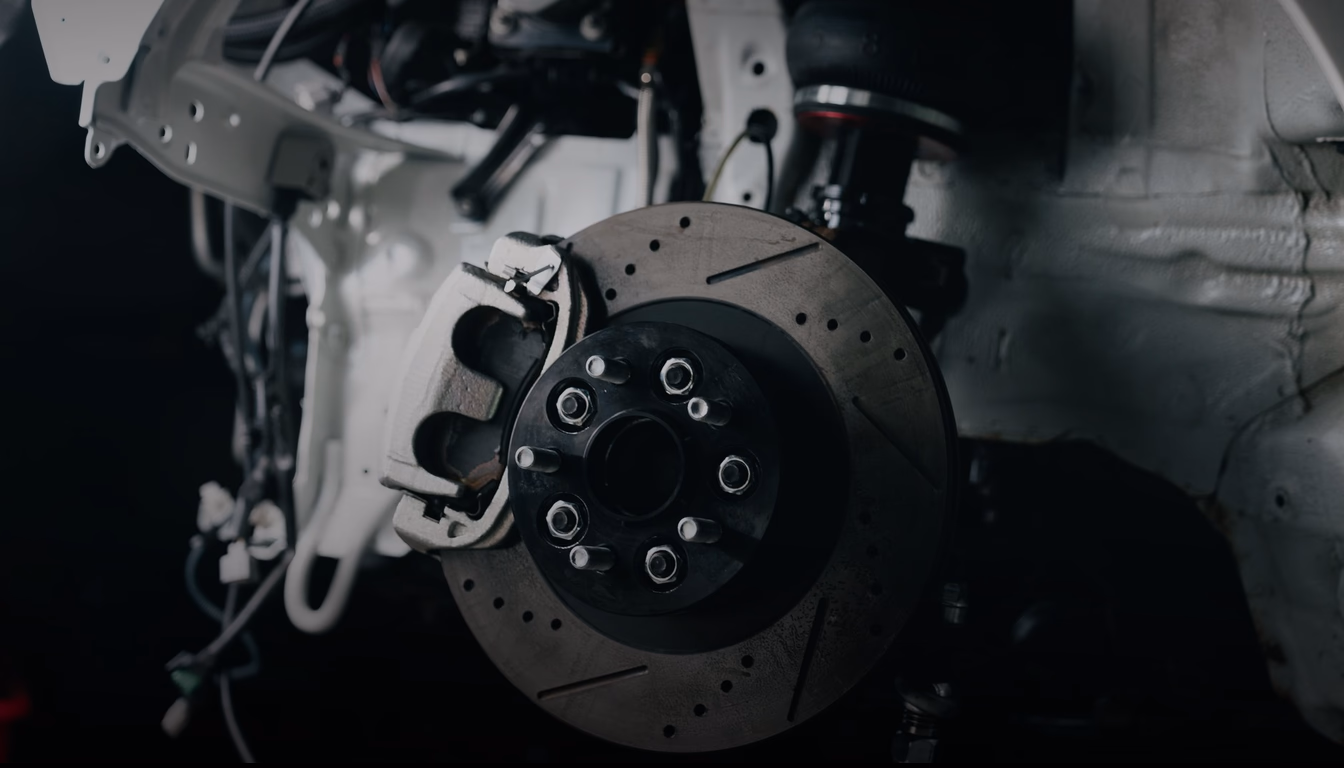

Anti-lock Braking System
Teaching Tires to Let Go
The story you know
ABS was invented in a single flash by one carmaker in the late 1970s, a clever brake trick that made cars safer overnight.
What the record shows
The 1978 production system rested on tire-road friction mechanics that located the slip optimum, nonlinear slip control that could hold it, and reliable wheel-speed sensing that could read it. Regulation then decided whether it reached ordinary drivers, so no single inventor or moment explains it.
Wet pavement, a dog in the headlights, and a foot drives the brake pedal to the floor. The pedal shudders back against the sole of your shoe. The steering wheel still turns. That shudder is the brakes loosening on purpose. A locked wheel skids wherever momentum points and stops steering anything at all. Bosch and Mercedes-Benz put the first production electronic version on sale in 1978, but the pulse was never only a valve problem. It needed a measured map of where a tire's grip peaks. It needed control rules that could hover near that peak, and a wheel-speed signal clean enough to trust. So the real question is how a car learned to find the exact edge of friction and keep stopping there without falling off it.
- 910lbs
- Peak tire braking force in one NHTSA test, reached at 15 percent slip.
- 6.3%
- Ceiling on rear-wheel slip tracking error in a 2018 sliding-mode ABS simulation.
- 19%
- Fewer wet-road crashes NHTSA found for passenger cars fitted with ABS.
- 32.5dB
- Signal-to-noise gain an adaptive filter gave a wheel-speed sensor in 2007.
When the fields matured
Each field had to produce a specific result before Anti-lock Braking System could exist as you know it. The timeline below shows when each one arrived.
Pull any thread, and the same story unravels.
In the order the story needs them, not the order they happened. Each card carries the year its field matured.
Keystone
Where a tire's grip quietly peaks and collapses
A skid mark is a record of wasted grip. Hans B. Pacejka and Egbert Bakker helped map where that grip runs out.
Look at a black skid mark on asphalt: rubber left by a wheel that stopped turning while the car kept going. That wheel was gripping worse than one still rolling. Engineers track this with slip, how much slower the tire spins than the car moves, like a treadmill set slightly behind your stride. Grip does not keep rising as you brake harder. It climbs, peaks, then sags as the wheel heads toward a lock. In one NHTSA test run, tire force peaked at 910 lbs at 15 percent slip. Pacejka and Bakker built tire models that describe that hump-shaped curve. Without it, ABS would have no target. It could release pressure too early and waste stopping power, or too late and lose the steering.
Without this field
Without tire-road friction mechanics, ABS would have no way to use the link between wheel slip and available braking force to tell when a tire is nearing peak grip. It could release or reapply brake pressure at the wrong slip level, cutting braking effectiveness and, on slippery surfaces, risking wheel lock and lost steering.
In one NHTSA test, tire braking force peaked at 910 lbs when the tire was slipping 15 percent.
How we know
Pacejka and Bakker's tire model, widely known as the Magic Formula, fits measured force-versus-slip data with a curve of the form y = D sin(C arctan(Bx - E(Bx - arctan(Bx)))), where x is slip and the coefficients B, C, D and E are tuned to a specific tire and surface. D sets the height of the peak that ABS tries to stay near.
Source: NHTSA Light Vehicle ABS Research Program · tier1
Elsewhere, control theorists were chasing a separate problem entirely: how to hold a system steady when its own rules keep shifting.
Math for chasing a peak that keeps moving
A tightrope walker never stands still on the rope. Sliding-mode control works the same way, correcting constantly around a target.
Brake from dry asphalt onto a wet painted line and the peak of the grip curve moves mid-stop. A fixed rule cannot follow it. Nonlinear control, math for systems whose response changes with conditions, lets a controller keep chasing that moving edge. Sliding-mode control is one documented approach that shoves the system back whenever it drifts off target. In a 2018 simulation, a sliding-mode ABS kept rear-wheel slip tracking error, the gap between wanted and actual slip, below 6.3 percent. That study is a modern demonstration, not the 1978 design.
Without this field
Without nonlinear slip control, an ABS may fail to keep wheel slip near the friction optimum as braking conditions change, raising the risk of wheel lock and lost steering. Sliding-mode control is one documented way to regulate slip robustly, though the evidence does not show ABS would be unable to work without it.
A 2018 sliding-mode ABS simulation kept steady-state rear slip tracking error below 6.3 percent, holding slip under control.
How we know
Source: Paper Number (2018) · tier1
None of that math reached a dealership by itself. Whether buyers got ABS at all was being settled by regulators, on their own schedule.
Turning an option box into a requirement
A motorcycle has no second pair of wheels to catch it when the front tire locks. Europe eventually stopped leaving that to chance.
Picture a European motorcycle showroom in 2016, where every new bike with an engine over 125 cc, bigger than a typical commuter scooter, now has to carry ABS. Before rules like that, fitment depended on what a manufacturer offered and what a buyer paid for. Evidence gave regulators a reason to push. NHTSA found a 19 percent reduction in wet-road crashes for passenger cars with ABS. A benefit that size does nothing for a vehicle built without the part.
Without this field
Without enforceable braking standards and fitment rules, ABS adoption could stay uneven, leaving its safety benefit off vehicles whose makers skipped it. The EU requirement for ABS on new motorcycles over 125 cc pushed the technology past optional fitment, and NHTSA evidence linked ABS in passenger cars to fewer wet-road crashes.
NHTSA found passenger cars with ABS had 19 percent fewer crashes on wet roads.
How we know
Source: The Long-Term Effect of ABS in Passenger Cars and LTVs (2009) · tier1
Every mandated system leaned on a humbler part, refined by measurement engineers working apart from all of this: a sensor that hears wheels turn.
Hearing a wheel slow down through the noise
Behind each wheel spins a toothed ring past a small magnetic pickup. Every passing tooth sends the controller a pulse.
Each tooth sweeping past a magnet and coil makes a blip, and the spacing of blips reveals wheel speed. Road vibration and electrical interference smear them. In 2007, an adaptive filter, software that retunes itself to the noise, improved the signal-to-noise ratio by 32.5 dB. Clean pulses let the controller see a real slowdown.
Without this field
Without reliable wheel-speed sensing and signal conditioning, the ABS controller could mistake noisy or distorted pulses for changes in wheel speed, or miss a real slowdown. Either error would undermine its ability to spot impending lockup and adjust braking.
An adaptive filter raised a wheel-speed sensor's signal-to-noise ratio by 32.5 dB, pulling the real signal out of broadband noise.
Watch
A visual companion to the fields above.
Takeaway
In 1978 the pieces finally sat in one car. Tire physics said where the edge was: in one NHTSA test, force peaked at 910 lbs with the tire turning 15 percent slower than the road beneath it. Control math said how to stay near that point while the surface changed mid-stop. Clean wheel-speed pulses told the controller which side of the edge each tire was on. Regulation arrived on its own clock, reaching new EU motorcycles 38 years later, and NHTSA counted 19 percent fewer wet-road crashes in cars that carried the system. What their meeting produced is a brake that refuses to give you full clamping force, because it knows the strongest stop sits just short of a lock. It is one of the few machines that improves your outcome by overruling your foot. The shudder against your shoe is that refusal, repeated, and the steering wheel that still answers is the reason anyone bothered to build it.
References
- NHTSA Light Vehicle ABS Research Program tier1
NHTSA, Light Vehicle ABS Research Program, report
- Paper Number (2018) tier1
Author details unavailable in search result, arXiv preprint 1810.11164v2
- The Long-Term Effect of ABS in Passenger Cars and LTVs (2009) tier1
National Highway Traffic Safety Administration, 2009
- Optimal estimation of the relevant information coming from a variable reluctance proximity sensor placed in a car undergoing performance tests (2007) tier1
Hernandez, Mechanical Systems and Signal Processing, 2007
